Why Choose Us

Domestic Platform with Full Control

Complete Independence: Our server uses entirely domestic processors and components, ensuring full control and compliance with local regulations.

Customized Firmware: We provide domestic firmware solutions that support various BMC requirements for Xinxin and industry markets, enhancing system compatibility and performance.

Proven Architecture: The native X86 architecture delivers exceptional performance and easy platform migration, ensuring broad application compatibility.

Extreme Performance to Meet Critical Application Needs

Advanced Processors: Supports 1-2 Haiguang Dhyana 7000/5000 series processors with up to 32 cores and 64 threads, handling demanding workloads with ease.

High Capacity Memory: Up to 2TB of DDR4 memory with speeds up to 3200MHz, providing ample capacity and high performance for data-intensive applications.

Enhanced Expansion: PCIe 4.0 support with up to 128 PCIe lanes per CPU, offering substantial system expansion and upgrade possibilities.

Flexible Configuration According to Needs

Modular Design: Features a flexible hardware modular design for computing, storage, and networking, allowing you to tailor configurations to meet diverse business requirements.

Versatile Storage Options: Supports up to 4 U.2 NVMe drives and various storage configurations, including up to 12 x 3.5″ drives or 25 x 2.5″ drives.

Scalable Expansion: Equipped with up to 6 PCIe Gen4 expansion slots, enabling future-proofing and adaptability to new technologies.

Stable and Reliable Intelligent Management

Redundant Components: Key system parts are designed with redundancy and hot-swappability, along with tool-free installation for quick maintenance and high system availability.

Comprehensive Management: Integrated BMC management chip supports multiple management protocols, including IPMI2.0, Redfish, and SNMP, providing robust remote system management capabilities.



Technical Specifications

Model: XTT525V2

Processor:

Supports 1-2 Haiguang Dhyana 7200/7300/5200/5300 series CPUs

Up to 32 cores, 64 threads

Maximum TDP of 280W per CPU

Chipset:

NA

Memory:

Supports 16 memory channels, with each channel supporting 1 DIMM, totaling 16 DDR4 DIMM slots

Memory types: DDR4 ECC RDIMMs/LRDIMMs

Maximum memory speed: 3200MHz

Maximum memory capacity: 2.0TB

Storage Controller:

Onboard 6Gb/s SATA controller

Optional 12Gb/s SAS HBA and RAID options including RAID 0/1/10, RAID 0/1/5/6/50/60 with cache supercapacitor protection

Storage:

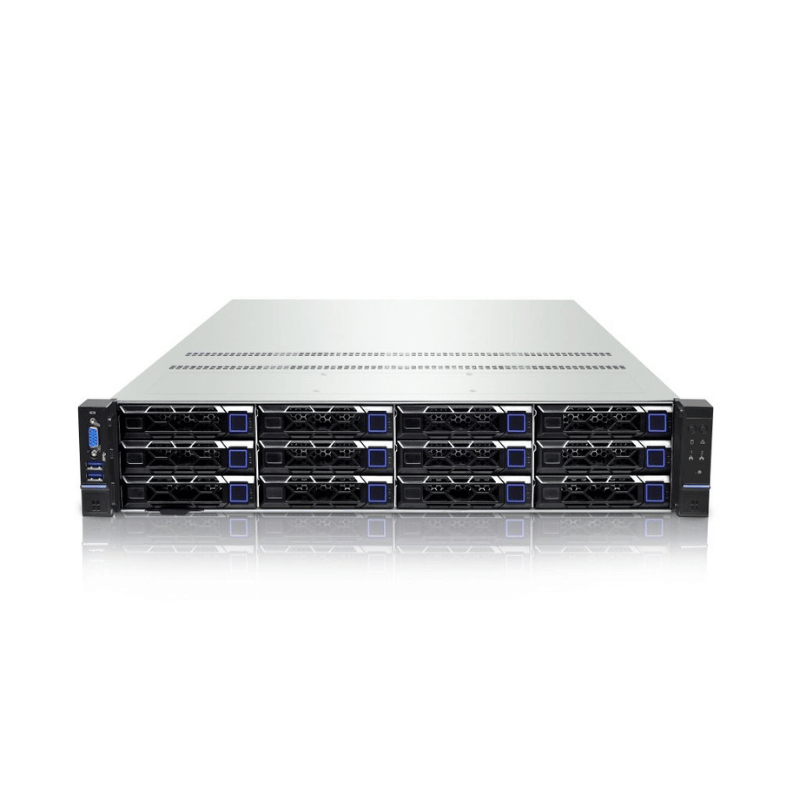

Front: Supports up to 12 x 3.5″ drives, 25 x 2.5″ drives, or 4 x U.2 NVMe (special configuration)

Rear: Supports 2 x 2.5″ drives

Internal: Supports 1 x M.2 (2280/22110)

PCIe Expansion:

Maximum of 6 half-height standard PCIe Gen4 expansion slots

PCIe Gen4 X16: 3 slots

PCIe Gen4 X8: 3 slots

GPU Support:

Supports up to 3 half-height, half-length single-width GPUs (typically inference cards)

Networking:

Integrated 1 x 1GbE RJ45 for IPMI

Integrated 2 x 1GbE RJ45 for business network

Optional network configurations: 2 x 1GbE, 4 x 1GbE, 2 x 10GbE, 2 x 25GbE standard network cards

Management:

Onboard iBMC management module supports IPMI, SOL, KVM Over IP, virtual media

Security:

Optional chassis intrusion detection

Custom key lockable front panel

Lockable chassis top cover (standard)

Optional TPM/TCM modules

Power Supply:

Supports 1-2 CRPS power modules with 1+1 redundancy and hot-swapping

Input options: 220V AC, 240V DC, 336V DC, -48V DC

Power options: 550W, 800W, 1300W

Ports:

Front: 1 x VGA, 2 x USB 3.0

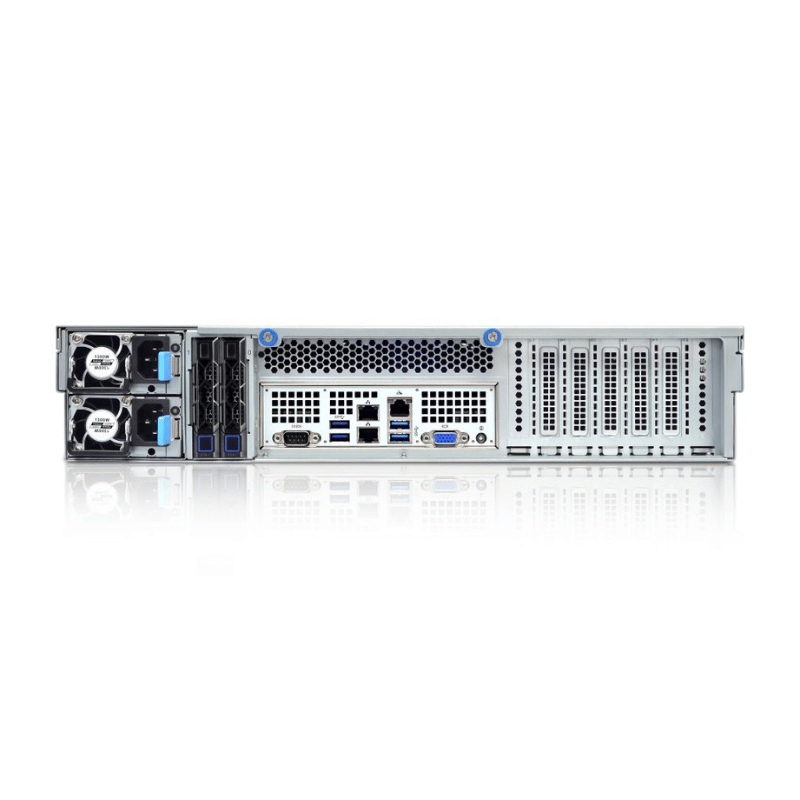

Rear: 1 x VGA, 4 x USB 3.0, 1 x COM port, 1 x RJ45 1GbE management port, 2 x RJ45 1GbE data ports

Dimensions:

Rackmount 2U, 447mm (W) 87mm (H) 650mm (D) (with ears: 670mm)

Weight:

Net weight approximately 28KG, gross weight including accessories and packaging approximately 35KG (varies with configuration)

Temperature:

Standard operating temperature: 5oC – 35oC (no direct sunlight)

Extended operating temperature: 5oC – 40oC (specific configurations)

Storage temperature: -40oC – 65oC

Humidity:

Operating humidity: 30% – 80% (non-condensing)

Storage humidity: 5% – 90% (non-condensing)

Supported Operating Systems:

Zhongbiao Kirin, Red Hat Enterprise Linux, SLES, CentOS, QEMU-Xen, vSphere, QEMU-KVM, Ubuntu, VMware ESXi 6.0
