Caractéristiques du produit

Domestic Platform, Independently Controllable

Full Domestic Production: Utilizes entirely domestic processors and components, ensuring complete control and independence.

Domestic Firmware: Supports various BMC solutions for Xinxin and industry markets.

X86 Architecture: Native X86 architecture provides excellent performance, easy platform migration, and strong application compatibility.

Extreme Performance Meets Critical Application Needs

Processor Support: Supports 1-2 Haiguang Dhyana 7000/5000 series processors, up to 32 cores and 64 threads per CPU, with a maximum TDP of 280W.

Memory Configuration: Supports 32 DDR4 DIMM slots with speeds up to 3200MHz, offering significant improvements in memory bandwidth and capacity.

PCIe 4.0: Single CPU supports up to 128 PCIe lanes, greatly enhancing system expansion capabilities.

Flexible Configuration According to Needs

Hardware Modular Design: Allows flexible configuration of computing, storage, and networking to meet various business requirements.

Storage Options: Supports up to 22 U.2 NVMe drive modules, with a front panel supporting up to 12 x 3.5″ drives or 25 x 2.5″ drives.

PCIe Expansion: Supports up to 10 PCIe Gen4 expansion slots (customizable), with OCP NIC 3.0 network expansion providing various network configuration options.

Stable and Reliable Intelligent Management

Redundant Design: Key system components feature redundant, hot-swappable designs with tool-free installation, enhancing system availability and maintenance efficiency.

Intelligent Management: Integrated BMC management chip supports IPMI2.0, Redfish, SNMP, and other management protocols, with remote KVM, virtual media, component status monitoring, and fault alerts, ensuring comprehensive remote system-level management.

Technical Specifications

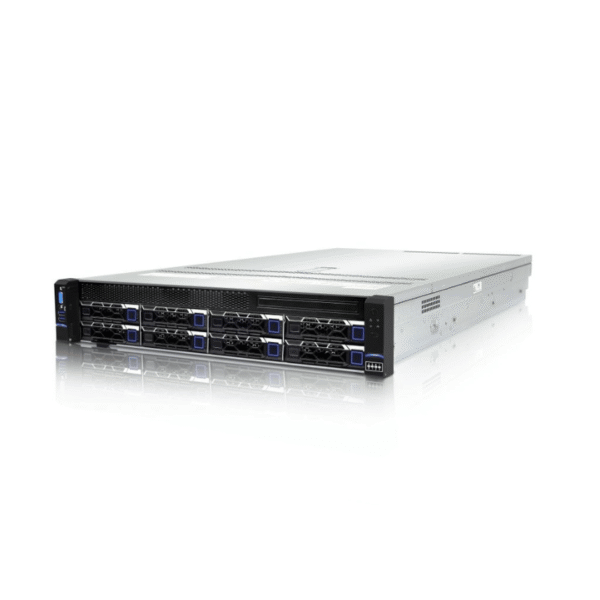

Model: XTT625V2

Processor:

Supports 1-2 Haiguang Dhyana 7200/7300/5200/5300 series CPUs

Up to 32 cores, 64 threads

Maximum TDP of 280W per CPU

Chipset:

NA

Memory:

Supports 16 memory channels, 2 DIMMs per channel, totaling 32 DDR4 DIMM slots

Memory types: DDR4 ECC RDIMMs/LRDIMMs

Maximum memory speed: 3200MHz

Maximum memory capacity: 4.0TB

Storage Controller:

Onboard 6Gb/s SATA controller

Optional 12Gb/s SAS HBA and RAID options including RAID 0/1/10, RAID 0/1/5/6/50/60 with cache supercapacitor protection

Storage:

Front: Supports up to 12 x 3.5″ drives or 25 x 2.5″ drives, or up to 22 x U.2 NVMe (special configuration)

Rear: Supports up to 6 x 2.5″ drives (4 of which can support U.2 NVMe)

Internal: Supports 2 x M.2 (2280)

PCIe Expansion:

Standard configuration: up to 8 PCIe Gen4 expansion slots

Custom configuration: up to 10 PCIe Gen4 expansion slots

1 x standard OCP 3.0 X8 slot (supports Multi Host/NCSI)

GPU Support:

Supports up to 2 full-height, full-length dual-width GPUs (PCIe Gen4 X16 DW-FHFL)

Supports up to 4 full-height, full-length single-width GPUs (PCIe Gen4 X16 SW-FHFL)

Networking:

Integrated 1 x 1GbE RJ45 BMC management port

Optional network configurations: 2 x 1GbE, 4 x 1GbE, 2 x 10GbE, 2 x 25GbE OCP3.0 NIC or PCIe network cards

Management:

Supports BMC management card with IPMI, SOL, KVM Over IP, virtual media

Security:

Optional chassis intrusion detection

Custom key lockable front panel

Lockable chassis top cover (standard)

Optional TPM/TCM modules

Power Supply:

Supports 1-2 CRPS power modules, with 1+1 redundancy and hot-swapping

Input options: 220V AC, 240V DC, 336V DC, -48V DC

Power options: 550W, 800W, 1300W

Ports:

Front: 1 x VGA, 2 x USB 3.0

Rear: 1 x VGA, 2 x USB 3.0, 1 x COM port, 1 x RJ45 1GbE management port

Dimensions:

Rackmount 2U, 447mm (W) 87mm (H) 763mm (D) (with ears: 783mm)

Weight:

Net weight approximately 35KG, gross weight including accessories and packaging approximately 42KG (varies with configuration)

Temperature:

Standard operating temperature: 5oC – 35oC (no direct sunlight)

Extended operating temperature: 5oC – 40oC (specific configurations)

Storage temperature: -40oC – 65oC

Humidity:

Operating humidity: 30% – 80% (non-condensing)

Storage humidity: 5% – 90% (non-condensing)

Supported Operating Systems:

Zhongbiao Kirin, Red Hat Enterprise Linux, SLES, CentOS, QEMU-Xen, vSphere, QEMU-KVM, Ubuntu, VMware ESXi 6.0

Pourquoi nous choisir ?

Domestic Advantage

Utilizes entirely domestic processors and components, ensuring independence and suitability for national strategic needs.

Outstanding Performance

High-performance Haiguang processors and large-capacity DDR4 memory configurations meet demanding computing needs and high bandwidth requirements.

Flexible Configuration

Modular hardware design and extensive storage and expansion options meet various business scenarios.

Stable and Reliable Management

Redundant design and intelligent management features provide high availability and comprehensive remote management capabilities.
