Product Features

Domestic Platform with Autonomous Control

Fully Domestic Components: Utilizes entirely domestic X86 processors and related components, ensuring comprehensive autonomous control.

Domestic Firmware: Supports a variety of BMC solutions tailored for domestic market needs, including those for Xinhua and industry-specific applications.

Native X86 Architecture: Delivers excellent performance with easy platform migration and high application compatibility.

Extreme Performance to Meet Critical Application Needs

Processor Support: Compatible with 1-2 HaiGuang 1/2 series processors from the HaiGuang 7000/5000 series.

Memory: Supports 32 DDR4 memory modules with a maximum frequency of 2666MHz.

PCIe 3.0: Single CPU supports up to 128 PCIe lanes, significantly enhancing system expandability.

Flexible Configuration Options

Modular Design: Decoupled hardware modules allow for flexible configuration of computing, storage, and networking components to meet various business needs.

Storage: Supports up to 44 3.5-inch drives, with a maximum of 4 rear-mounted U.2 NVMe drives.

PCIe Expansion: Up to 8 PCIe Gen4 expansion slots.

Network Expansion: Supports 1 network expansion card with options for 4 1GbE, 2 10Gb SFP+, 4 10Gb SFP+, or 2 25Gb SFP28 configurations.

RAID/SAS Expansion: Supports one RAID/SAS expansion card.

Stable and Reliable with Intelligent Management

Redundant and Hot-Swappable Components: Key system components feature redundant and hot-swappable designs with tool-free assembly, enhancing fault maintenance efficiency and system availability.

Integrated Management Chip: Offers an open management platform supporting IPMI2.0, Redfish, SNMP, and other management protocols.

Remote Management: Supports remote KVM, virtual media, key component status monitoring, and anomaly alerts for comprehensive remote system-level management.

Technical Specifications

Processor: Supports 1-2 HaiGuang Dhyana 7100/7200/5100/5200 series CPUs, up to 32 cores, 64 threads, with a TDP of 225W.

Memory: 16 memory channels, each supporting 2 DIMMs, totaling 32 DDR4 DIMM slots. Supports DDR4 ECC RDIMMs/LRDIMMs with frequencies of 1866/2133/2400/2666MHz, up to 4.0TB.

Storage Controllers:

Onboard SATA controller, 6Gb/s

Optional 12Gb/s SAS HBA, supporting RAID 0/1/10

Optional 12Gb/s RAID, supporting RAID 0/1/5/6/50/60 with cache supercapacitor protection and RAID status migration features

Storage:

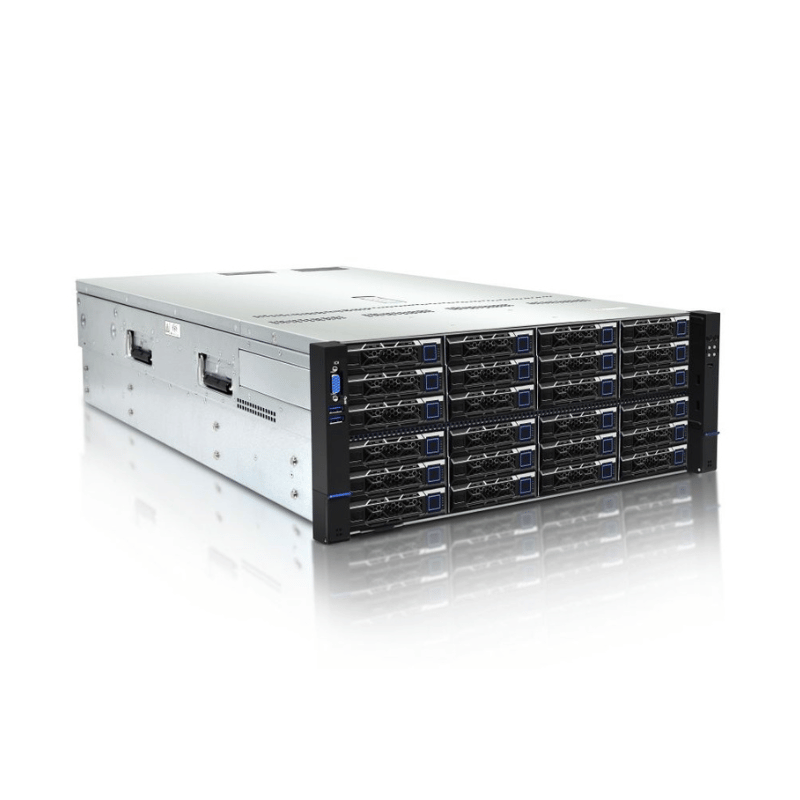

Front: Supports 24x 3.5-inch drives

Rear: Supports up to 16x 3.5-inch drives + 2x 2.5-inch drives

Optional: 4x U.2 NVMe rear

Built-in: Optional 4x 3.5-inch drives

Built-in: 2x M.2 (80/110mm)

PCI-E Expansion:

Up to 8 standard PCIe 3.0 slots (default configuration)

1 PCIe Gen3 X8 network expansion slot

1 PCIe Gen3 X8 SAS expansion slot

GPU: Generally, storage models do not support GPU (AI) cards (custom development available).

Networking:

Onboard 1x 1GbE RJ45 for IPMI

Optional: 2 1GbE/4 1GbE/2 10GbE/2 25GbE OCP3.0 network cards or PCIe standard network cards

Management:

BMC management module

Supports IPMI, SOL, KVM Over IP, virtual media, and system log collection

Security:

Optional: Chassis cover intrusion detection

Optional: Front panel with key lock

Standard: Lockable chassis top cover

Optional: TPM/TCM

Power Supply:

Supports 1 or 2 CRPS power modules, 1+1 redundancy, hot-swappable

Optional: 220VAC/240VDC/336VDC/-48VDC inputs

Optional: 800W/1300W/1600W power options

Ports:

Front: 1 VGA, 2 USB 3.0

Rear: 1 VGA, 2 USB 3.0, 1 management network port, 1 COM port, 2 RJ45 1GbE data ports

Dimensions: 4U rack-mount, 448mm (W) x 175mm (H) x 778mm (D) (758mm without ears)

Operating System Support: Galaxy Kylin, UOS, Red Hat Enterprise Linux, SLES, CentOS, QEMU-Xen, vSphere, QEMU-KVM, Ubuntu, VMware ESXi 6.0

Why Choose Us?

Commitment to Domestic Technology and Control

Complete Autonomy: Our server utilizes fully domestic processors and components, ensuring complete control and independence from foreign technologies. This guarantees a high level of security and compliance with domestic standards.

Unmatched Performance and Flexibility

Advanced Processor Options: Support for the latest HaiGuang processors ensures top-tier performance for critical applications, including ERP systems, high-performance databases, virtualization, and big data analytics.

Extensive Memory and Storage Options: With support for up to 4.0TB of memory and flexible storage configurations, including high-speed NVMe drives, our server meets diverse and demanding data requirements.

Enhanced Expandability and Customization

Versatile Expansion Capabilities: The server offers extensive PCIe and network expansion options, allowing you to tailor the system to specific needs and future-proof your investment.

Modular Design: The decoupled hardware modules facilitate easy upgrades and customization, ensuring the server adapts to evolving business requirements.

Robust Management and Security Features

Intelligent Management: Our integrated management chip and support for multiple management protocols provide comprehensive remote management capabilities, improving system reliability and ease of use.

Advanced Security: With features such as optional chassis intrusion detection, key-locked front panels, and TPM/TCM support, our server is designed to safeguard your data and ensure operational integrity.
