Product Features



Processor Support: Equipped with 2 fourth or fifth-generation Intel? Xeon? Scalable processors, supporting up to 385W TDP, offering powerful computational performance.

Memory: Supports 16 DDR5 memory slots with up to 5600MHz frequency, boosting memory bandwidth by 75%.

E-ATX Design: Built on the E-ATX standard board, balancing performance and cost-effectiveness to meet mainstream workload demands with excellent value.

Flexible Configuration and Superior Expansion

Storage Options: Flexible storage module choices, compatible with 3.5″ and 2.5″ drives, with support for NVMe, SAS, and SATA configurations.

NVMe Support: Accommodates up to 6 U.2 NVMe SSDs, ensuring it meets the needs of mainstream applications.

PCIe Expansion: Offers up to 6 standard PCIe 5.0 expansion slots, ensuring excellent expandability for future upgrades.

Stable and Reliable with Intelligent Management

Redundancy and Hot-Swappability: All key system components are designed with redundancy and hot-swap capabilities, and tool-less design enables efficient fault maintenance and higher system availability.

Smart Management: Integrated management chip supports multiple protocols, including IPMI 2.0, Redfish, and SNMP, providing an open management platform.

Remote Management: Supports remote KVM, virtual media, key component status monitoring, and abnormal alerting, offering comprehensive system-wide intelligent management.

Technical Specifications

Form Factor: 2U standard rackmount

Processor:

Supports 1 or 2 fourth or fifth-generation Intel  Xeon Scalable processors

Maximum TDP: 385W

Chipset: Intel C741

Memory:

16 DDR5 memory slots (1DPC)

Maximum frequency: 5600MHz

Memory types: RDIMM, 3DS RDIMM

Maximum capacity: 4TB

Storage Controllers:

Integrated 6Gb/s SATA controller

Optional 12Gb/s SAS HBA and RAID controllers

Local Storage:

Front: Supports up to 12 x 3.5-inch drives, with an 8 x 3.5-inch option

Rear: Supports 2 x 2.5-inch drives

Internal: 2 x M.2 (PCIe 4.0 x4, 2280 & 22110)

Maximum: 6 x U.2 NVMe SSDs

PCIe Expansion:

Supports 6 standard expansion slots (4 x16 and 2 x8)

Network:

1 x 1Gb RJ45 dedicated management port

2 x 1Gb RJ45 data ports with NCSI support

Ports:

Front: 1 x VGA, 2 x USB 3.0

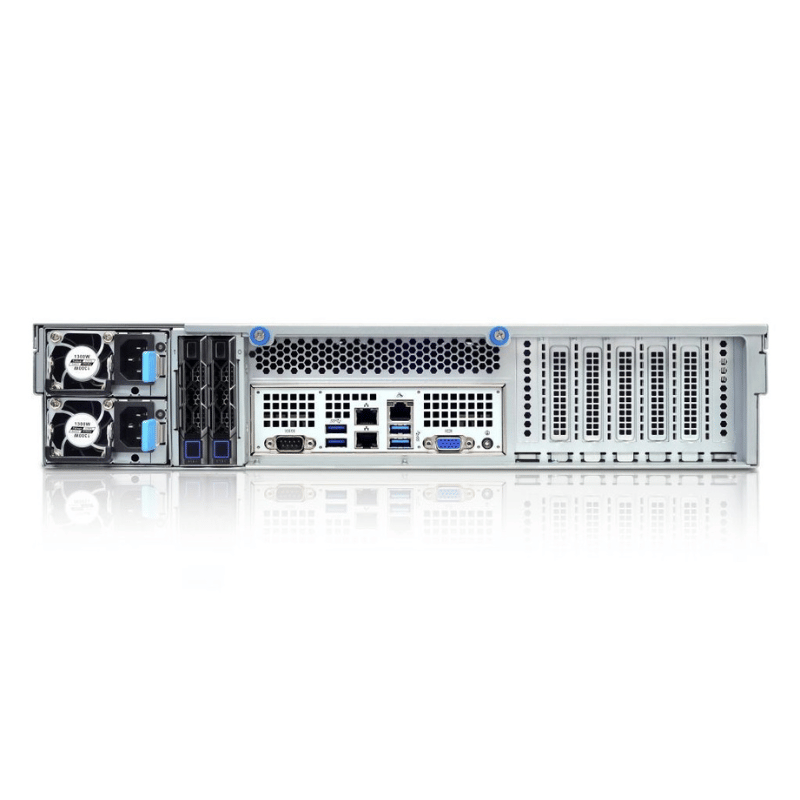

Rear: 1 x VGA, 4 x USB 3.0, 1 x RJ45 management port, 1 x COM port, 2 x 1Gb RJ45 data ports

Management Features:

Integrated BMC management chip (AST2600)

Supports IPMI 2.0, Redfish, SOL, KVM, virtual media

Security Features:

Optional TPM/TCM security module

Chassis intrusion detection

Lockable chassis top cover

Power Supply:

Configurable with 2 power modules (1+1 redundancy, hot-swappable)

Input options: 220V AC, 240V DC

Power ratings: 800W or 1300W Platinum efficiency

Cooling System:

Supports 4 hot-swappable fan modules with N+1 redundancy

Intelligent fan speed control and abnormal alarm capabilities

Chassis Dimensions:

Width: 448mm x Height: 87mm x Depth: 660mm (680mm including ears)

Temperature Range:

Operating temperature: 5oC – 35oC (without direct sunlight)

Storage temperature: -40oC – 65oC

Humidity Range:

Operating: 8% to 90% (non-condensing)

Storage: 5% to 95% (non-condensing)

Operating System Support:

Microsoft Windows Server

Microsoft Hyper-V Server

Red Hat Enterprise Linux

SUSE Linux Enterprise Server

CentOS

Ubuntu

Oracle Linux

VMware ESXi

Citrix XenServer

Why Choose Us?

Cost-Effective Performance

Balanced Design: Combines powerful processing capabilities and cost-effective configuration, making it ideal for a wide range of mainstream applications.

Future-Proof Expansion

Scalability: Provides flexible storage and expansion options, including PCIe 5.0 slots, ensuring the server can evolve with your business needs.

Reliable Operation and Advanced Management

Built for Reliability: Redundant power supplies, hot-swappable fans, and robust system components ensure stable operation and ease of maintenance.

Smart Monitoring: Comprehensive remote management features allow seamless system oversight, minimizing downtime and optimizing performance.

Experience exceptional performance, scalability, and reliability with this server, perfectly designed to offer top-notch functionality at a highly competitive price.
