Powerful Performance and High Storage Capacity

The XTT618 server excels in performance and storage, supporting Intel? Xeon? Scalable processors and featuring 24 DDR4 memory slots with a maximum capacity of 9.0TB. It offers flexible storage configurations, including support for up to 4 x 3.5-inch or 10 x 2.5-inch hot-swappable SAS/SATA drives, or 10 x 2.5-inch NVMe SSDs. The combination of 205W CPUs, low-latency NVMe drives, and high-power GPUs enhances overall performance, making it ideal for demanding applications.

Key Features:

High Performance: Equipped with Intel? Xeon? Scalable processors and 205W CPUs for exceptional computing power.

Large Memory Capacity: Supports up to 9.0TB of DDR4 memory, adaptable to various applications.

Flexible Storage: Configurable with up to 10 NVMe SSDs or 4 x 3.5-inch and 10 x 2.5-inch SAS/SATA drives for extensive storage options.

Intel universal type server

Detailed Product Specifications

Model: XTT618

Processors:

1/2 Intel? Xeon Scalable processors, 3100/4100/5100/6100/8100 series, TDP 205W

1/2 Intel? Xeon  Scalable processors, 3200/4200/5200/6200/8200 series, TDP 205W

Chipset: Intel C621

Memory:

24 DDR4 DIMM slots, 12 memory channels

Supports DDR4 RDIMMs/LRDIMMs/NVDIMMs, up to 2933MT/s

Supports Intel DCPMMs, up to 2666MT/s

Maximum 9.0TB system memory (requires specific CPU and Intel DCPMM)

Storage:

Integrated 6Gb/s SATA controller

Optional 12Gb/s SAS HBA and RAID controllers

Configurable with up to 4 x 3.5 SAS/SATA drives or 10 x 2.5 SAS/SATA/SSD drives

Supports up to 10 x 2.5 NVMe SSDs

Includes 1 PCIe M.2 (80/110mm), 2 SATA DOM

PCI-E Expansion: Up to 4 PCI Express 3.0 slots (including 2 dedicated slots)

GPU: Supports 2 half-length single-width GPUs

Network:

Integrated 2 x 1GbE

Optional network cards: 2x1GbE/4x1GbE/2x10GbE/4x10GbE/2x25GbE/2x40GbE

Management:

Onboard BMC module, supporting IPMI2.0, KVM Over IP, SOL, SNMP

Advanced management software for remote and batch management

Optional LCD management module

Security: Optional TPM/TCM module, chassis intrusion detection

Power:

1/2 power modules, 1+1 redundancy, hot-swappable

Options: 220V AC/240V DC/336V DC/-48V DC

Options: 550W/800W/1300W/1600W

Ports:

Front: 1 D-Sub VGA, 2 USB 3.0, 1 LCD Mini USB

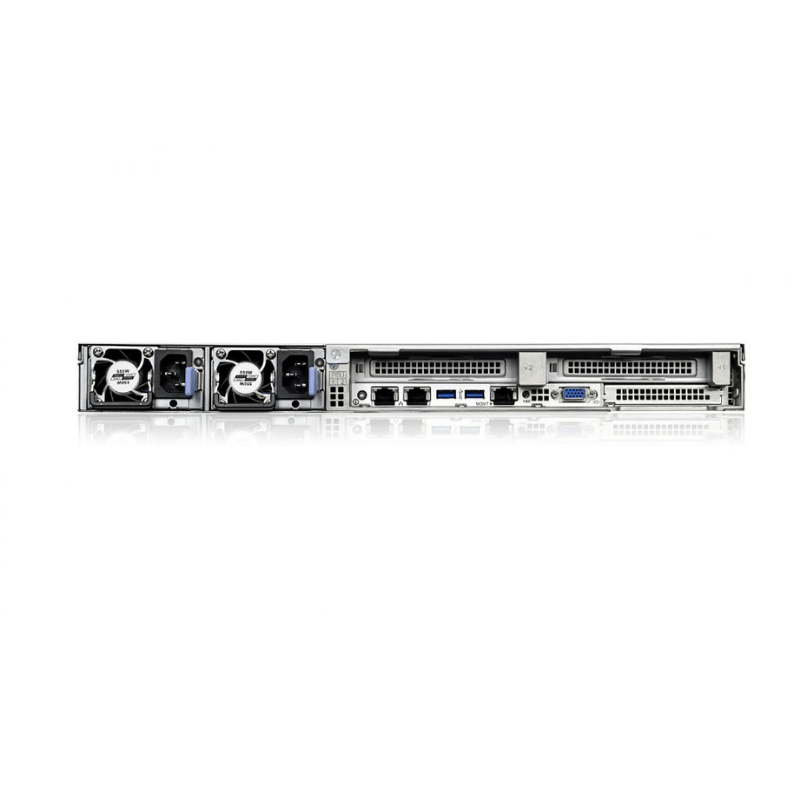

Rear: 1 D-Sub VGA, 2 USB 3.0, 1 RJ45 management port, 2 RJ45 Ethernet ports

System Fans: 7 x 4056, N+1 redundant, hot-swappable

Dimensions: 1U rackmount, 436mm (W) x 43.6mm (H) x 808mm (D) (excluding ears: 788mm)

Weight: Approximately 19KG net, 28KG with rails and accessories

Temperature:

Operating: 5 C to 35 C (no direct sunlight)

Extended: 5 C to 40 C (with specific configuration)

Storage/Transport: -40 C to 65 C

Humidity:

Operating: 10% to 80% (non-condensing)

Storage: 5% to 95% (non-condensing)

Supported Operating Systems:

Microsoft Windows, Windows Server, Hyper-V Server

Red Hat Enterprise Linux, SUSE Linux Enterprise Server

CentOS, Ubuntu, Fedora, Solaris, Oracle Linux

FreeBSD, VMware ESXi, Citrix XenServer
