Product Features

Extreme Performance for Demanding Applications

Processor: Supports 1 or 2 Intel? Xeon? Scalable processors (Ice Lake) from the 8300, 6300, 5300, or 4300 series, with a maximum TDP of 270W per CPU.

UPI Interconnect: Supports up to 3 UPI links with speeds up to 11.2GT/s, enhancing data transfer rates between processors.

Memory: Offers 32 DDR4 memory slots with support for speeds up to 3200MHz, providing high memory bandwidth and capacity.

Flexible Configuration to Meet Your Needs

Storage Options: Flexible hardware module design supports up to 20 x 3.5″ hard drives or 39 x 2.5″ hard drives.

PCIe Expansion: Features up to 10 PCIe 4.0 expansion slots, with the capability to support up to 6 full-height, full-length single-width PCIe devices.

Network Expansion: Supports OCP NIC 3.0 with optional network configurations including 4x1GbE, 2x10Gb SFP+, 4x10Gb SFP+, or 2x25Gb SFP28.

Stable and Reliable with Intelligent Management

Redundant and Hot-Swappable Design: Key system components are designed with redundancy and hot-swappability, improving maintenance efficiency and system reliability.

Smart Management: Integrated with a BMC management chip that supports IPMI2.0, Redfish, SNMP, and other management protocols.

Remote Management: Features remote KVM access, virtual media, hardware status monitoring, and real-time alerts for comprehensive remote system management.

Technical Specifications

Form Factor:

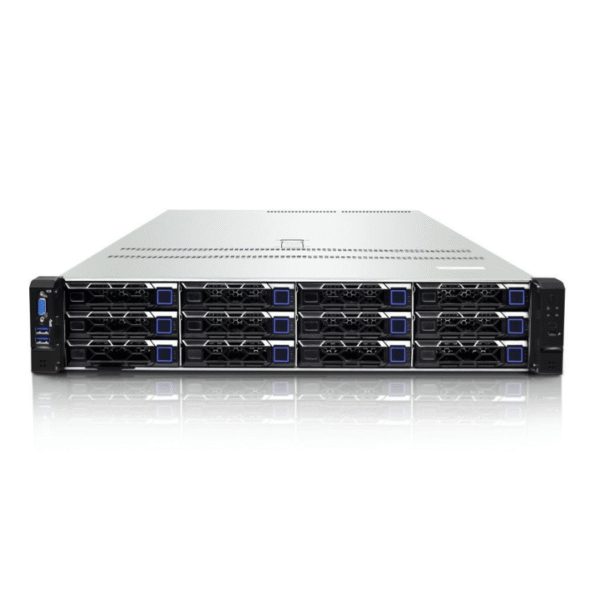

2U rackmount server

Processor:

Supports 1 or 2 Intel? Xeon? Scalable processors (Ice Lake)

Up to 270W per CPU

Up to 3 UPI links with speeds up to 11.2GT/s

Chipset:

Intel C621A

Memory:

32 DDR4 memory slots, organized into 16 channels

Maximum memory speed of 3200MHz

Memory types: RDIMM/LRDIMM

Maximum memory capacity: 12TB

Storage Controller:

Integrated 6Gb/s SATA controller

Optional 12Gb/s SAS HBA and 12Gb/s SAS RAID controller

Local Storage:

Front: Supports up to 12 x 3.5″ or 25 x 2.5″ drives

Rear: Supports up to 4 x 3.5″ + 4 x 2.5″ drives or 10 x 2.5″ drives

Internal: Supports 4 x 3.5″ drives (compatible with 2.5″ drives)

M.2: Supports 2 x M.2 (2280, PCIe 3.0 x2), optional SD module (RAID1 dual Micro SD)

PCIe Expansion:

Supports up to 10 PCIe 4.0 expansion slots

GPU Support:

Supports up to 3 dual-width GPUs or 8 single-width GPUs

Networking:

1 x 1Gb RJ45 dedicated management port

Optional OCP NIC 3.0 with configurations: 4x1GbE, 2x10Gb SFP+, 4x10Gb SFP+, 2x25Gb SFP28

I/O Ports:

Front: 1 x VGA, 2 x USB 3.0, 1 x LCD Mini USB

Rear: 1 x VGA, 2 x USB 3.0, 1 x RJ45 management port, 1 x COM port, 1 x OCP NIC 3.0 slot

Management:

Integrated BMC management chip, supports IPMI2.0, SOL, KVM, virtual media

Provides 1 x 1Gbps RJ45 dedicated management port, optional LCD management module

Security:

Optional TPM/TCM security modules

Chassis intrusion detection and lockable chassis top cover

Power Supply:

Configurable with up to 2 power modules, supports 1+1 redundancy and hot-swapping

Input options: 220V AC, 240V DC, 336V DC, -48V DC

Power options: 800W, 1300W, 1600W, 2000W (high-efficiency platinum)

Cooling:

4 hot-swappable fan modules, supports 3+1 redundancy

Intelligent speed control and fault alerts

Chassis Dimensions:

2U rackmount, 447mm (W) 87mm (H) 763mm (D) (with ears: 783mm)

Operating Temperature:

5oC – 35oC (for detailed information, please consult with sales personnel)

Operating Humidity:

0% – 90% relative humidity

Supported Operating Systems:

Microsoft Windows Server, Microsoft Hyper-V Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Ubuntu, Fedora, Solaris, Oracle Linux, FreeBSD, VMware ESXi, Citrix XenServer

Why Choose Us?

Powerful Performance with Advanced Features

With Intel? Xeon? Scalable processors and up to 32 DDR4 memory slots, this server is designed to handle intensive applications and workloads with ease.

Highly Configurable

The flexible storage and PCIe options allow you to tailor the server to your specific needs, ensuring it adapts to various business requirements.

Reliable and Intelligent Management

Equipped with advanced management tools and redundant design, this server ensures high availability and ease of maintenance, with comprehensive remote management capabilities.
