Fitur Produk

Exceptional Performance for Demanding Applications

Processor Support: Compatible with the 4th or 5th generation Intel? Xeon? Scalable processors, featuring the latest microarchitecture. Supports up to 385W processors, delivering exceptional computing power.

Memory: Equipped with 32 DDR5 memory slots, supporting frequencies up to 5600MHz. The increased memory bandwidth enhances performance by 75%.

PCIe 5.0: Supports PCIe 5.0, doubling the bandwidth compared to previous generations and significantly improving system expansion capabilities.

Konfigurasi Fleksibel untuk Memenuhi Kebutuhan Anda

Modular Design: Features a decoupled hardware design, allowing flexible configuration for computing, storage, and networking to accommodate various business requirements.

Storage Options: Supports up to 24 U.2 NVMe SSDs with flexible configurations for 3.5 or 2.5 hard drives.

PCIe Expansion: Offers up to 10 standard PCIe expansion slots, supporting both PCIe 5.0 and PCIe 4.0.

Network Expansion: Includes an OCP NIC 3.0 slot with options for 4 1GbE, 2 10Gb SFP+, 4 10Gb SFP+, or 2 25Gb SFP28 network cards.

Stabil dan Andal dengan Manajemen Cerdas

Redundant and Hot-Swappable Components: All critical components are designed with redundancy and hot-swappability, enhancing fault maintenance efficiency and system reliability.

Integrated Management: Features an intelligent management chip supporting IPMI 2.0, Redfish, SNMP, and other management protocols.

Remote Management: Provides comprehensive remote management capabilities including KVM, virtual media, key component status monitoring, and anomaly alerts.

Spesifikasi Teknis

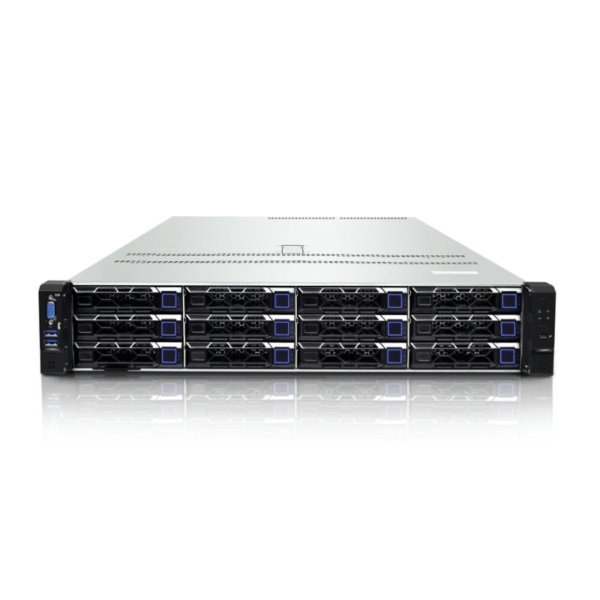

Model: XTT628V3

Prosesor:

Supports 1 or 2 4th or 5th generation Intel? Xeon? Scalable processors

Maximum power consumption: 385W

Chipset: Intel C741

Memori:

32 DDR5 memory slots across 16 channels

Memory types: RDIMM, 3DS RDIMM

Maximum capacity: 8TB

Frequency: Up to 5600MHz

Storage Controllers:

Pengontrol SATA 6Gb/s terintegrasi

Optional 12Gb/s SAS HBA and RAID controllers

Penyimpanan Lokal:

Front: Up to 12 x 3.5-inch or 25 x 2.5-inch drives

Rear: Up to 4 x 3.5-inch + 2 x 2.5-inch or 2 x 3.5-inch + 4 x 2.5-inch drives

Internal: 2 x M.2 (2280/22110, PCIe 4.0 x4)

Maximum: 24 x U.2 NVMe SSDs

Ekspansi PCIe:

Up to 10 standard PCIe expansion slots

Dukungan GPU:

Up to 3 double-width GPUs

Up to 6 single-width GPUs

Jaringan:

1 x 1GbE RJ45 for IPMI

Optional OCP NIC 3.0 slot: 4 1GbE, 2 10GbE, 4 10GbE, or 2 25GbE

Manajemen:

Integrated BMC management chip

Supports IPMI 2.0, Redfish, SOL, KVM, virtual media

Optional LCD management module

Security Features:

Optional TPM/TCM security module

Chassis intrusion detection

Lockable chassis top cover

Catu Daya:

Supports 2 power modules with 1+1 redundancy and hot-swappable capability

Opsi masukan: 220V AC, 240V DC, 336V DC, -48V DC

Optional power ratings: 800W, 1300W, 1600W, 2000W (Platinum efficiency)

Pelabuhan:

Depan: 1 x VGA, 2 x USB 3.0, 1 x LCD Mini USB

Rear: 1 x VGA, 2 x USB 3.0, 1 x RJ45 management port, 1 x COM port

Dimensions:

Rackmount 2U, Width: 448mm x Height: 87mm x Depth: 763mm (783mm including ears)

Temperature:

Operating: 5oC – 35oC (without direct sunlight)

Storage: -40oC – 65oC

Humidity:

Operating: 8% – 90% (non-condensing)

Storage: 5% – 95% (non-condensing)

Operating System Support:

Microsoft Windows Server

Microsoft Hyper-V Server

Red Hat Enterprise Linux

SUSE Linux Enterprise Server

CentOS

Ubuntu

Oracle Linux

VMware ESXi

Citrix XenServer

Mengapa Memilih Kami?

Cutting-Edge Performance

Advanced Processing: Harness the power of the latest 4th or 5th generation Intel? Xeon? Scalable processors for superior performance in demanding applications.

Enhanced Flexibility

Modular Design: Tailor the server configuration to meet specific business needs with flexible storage, expansion, and networking options.

Energy Efficiency and Reliability

Efficient Cooling: Superior energy efficiency with customizable cooling options and reliable operation with redundant, hot-swappable components.

Comprehensive Management

Intelligent Management: Integrated management features for remote monitoring and control, ensuring effective system oversight and maintenance.
